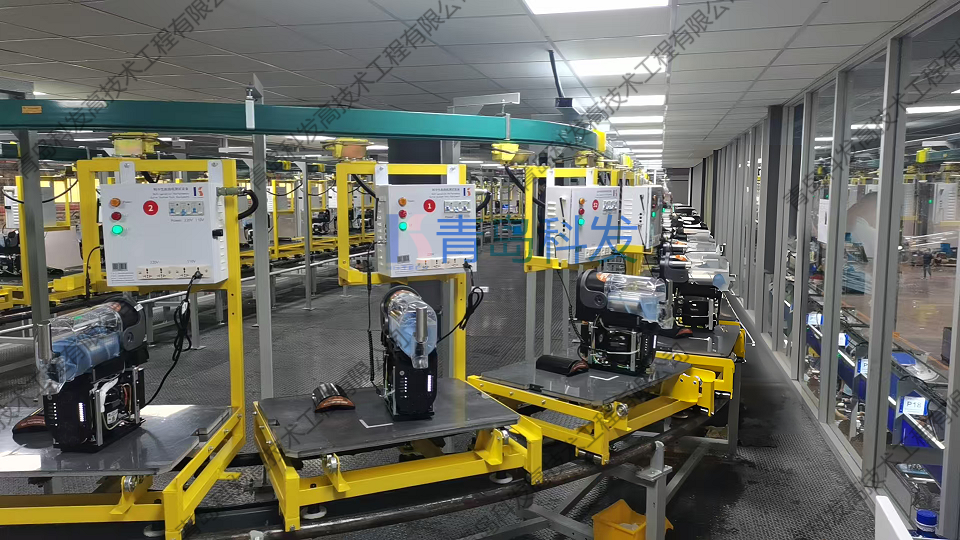

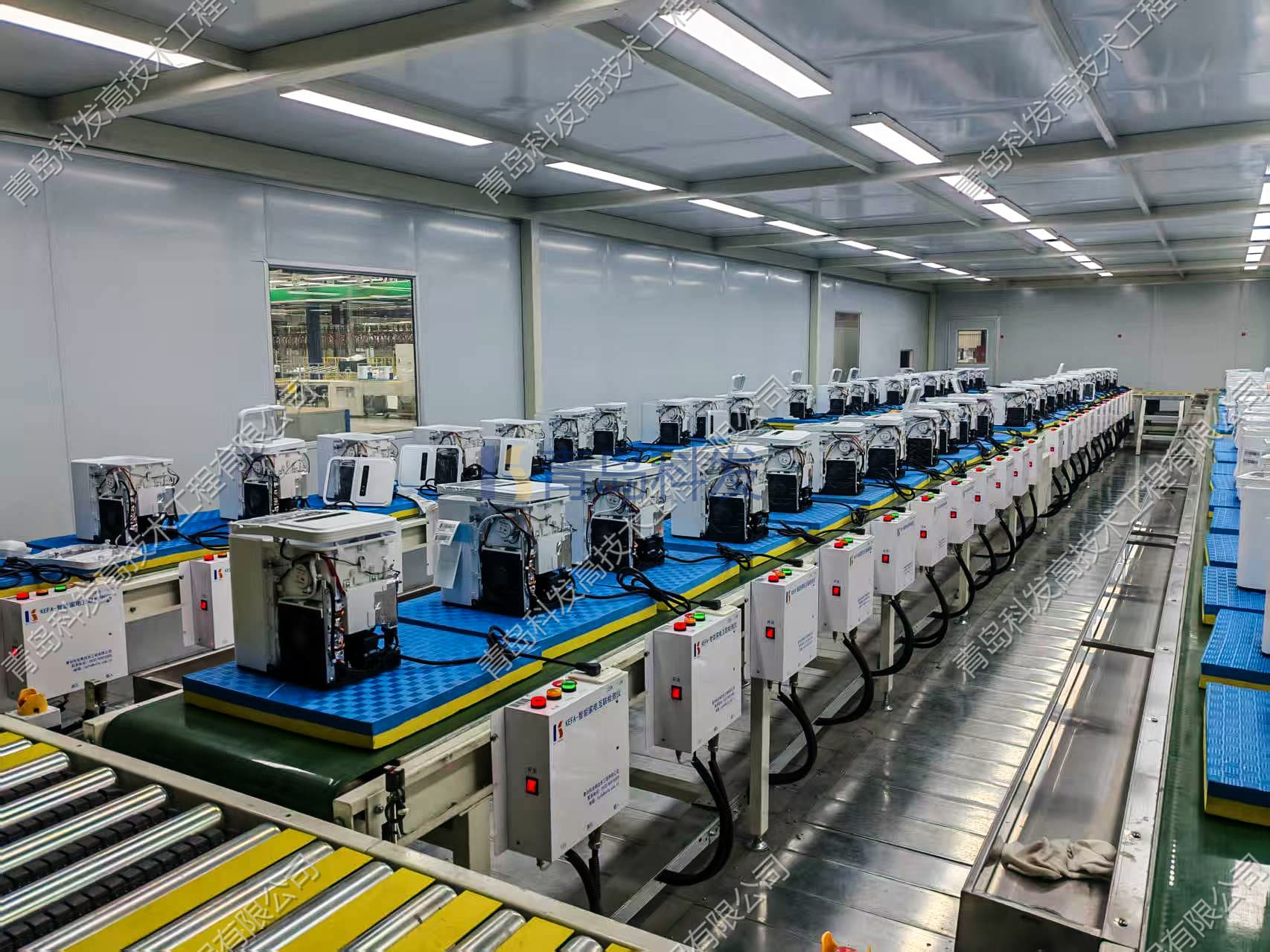

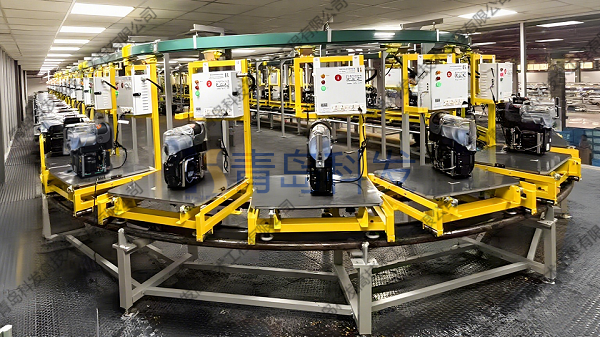

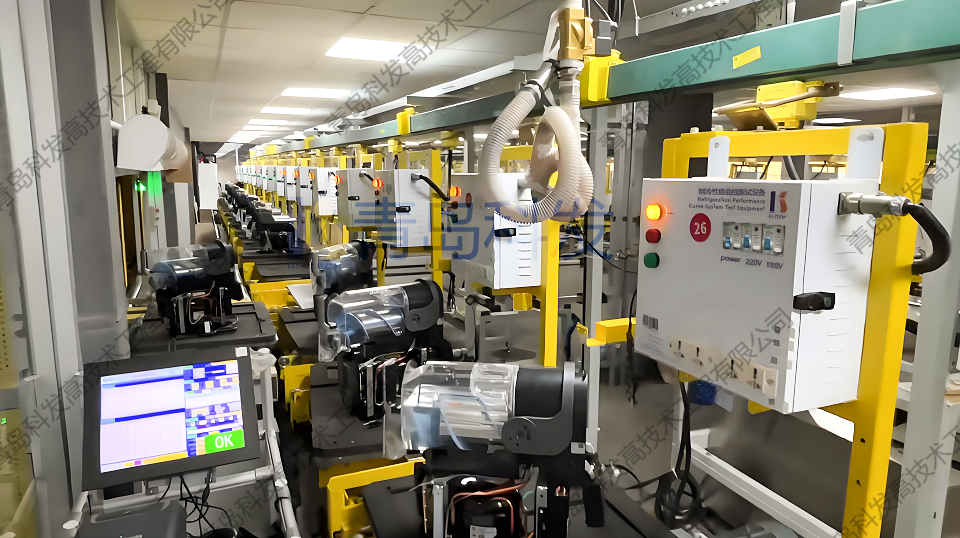

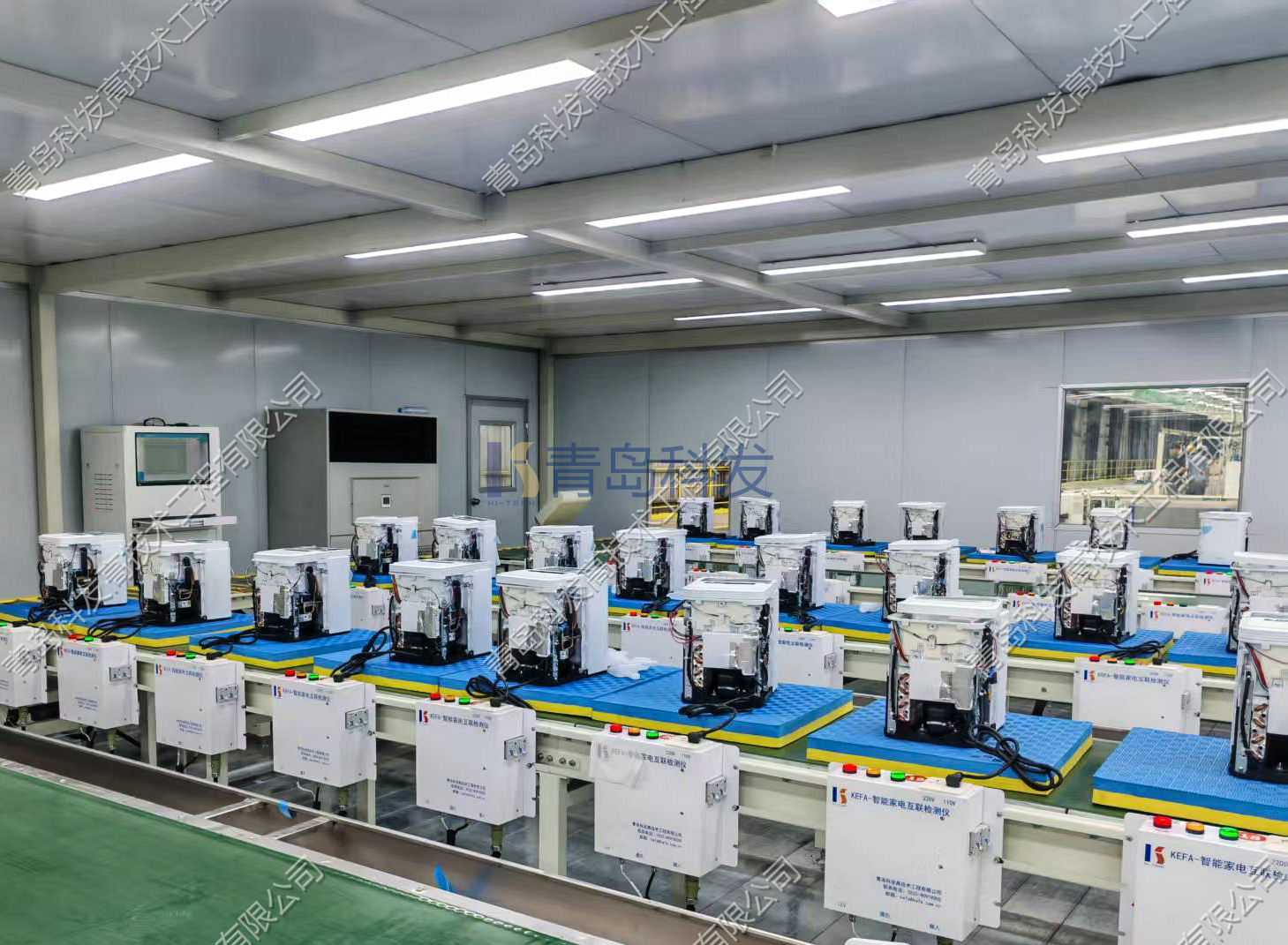

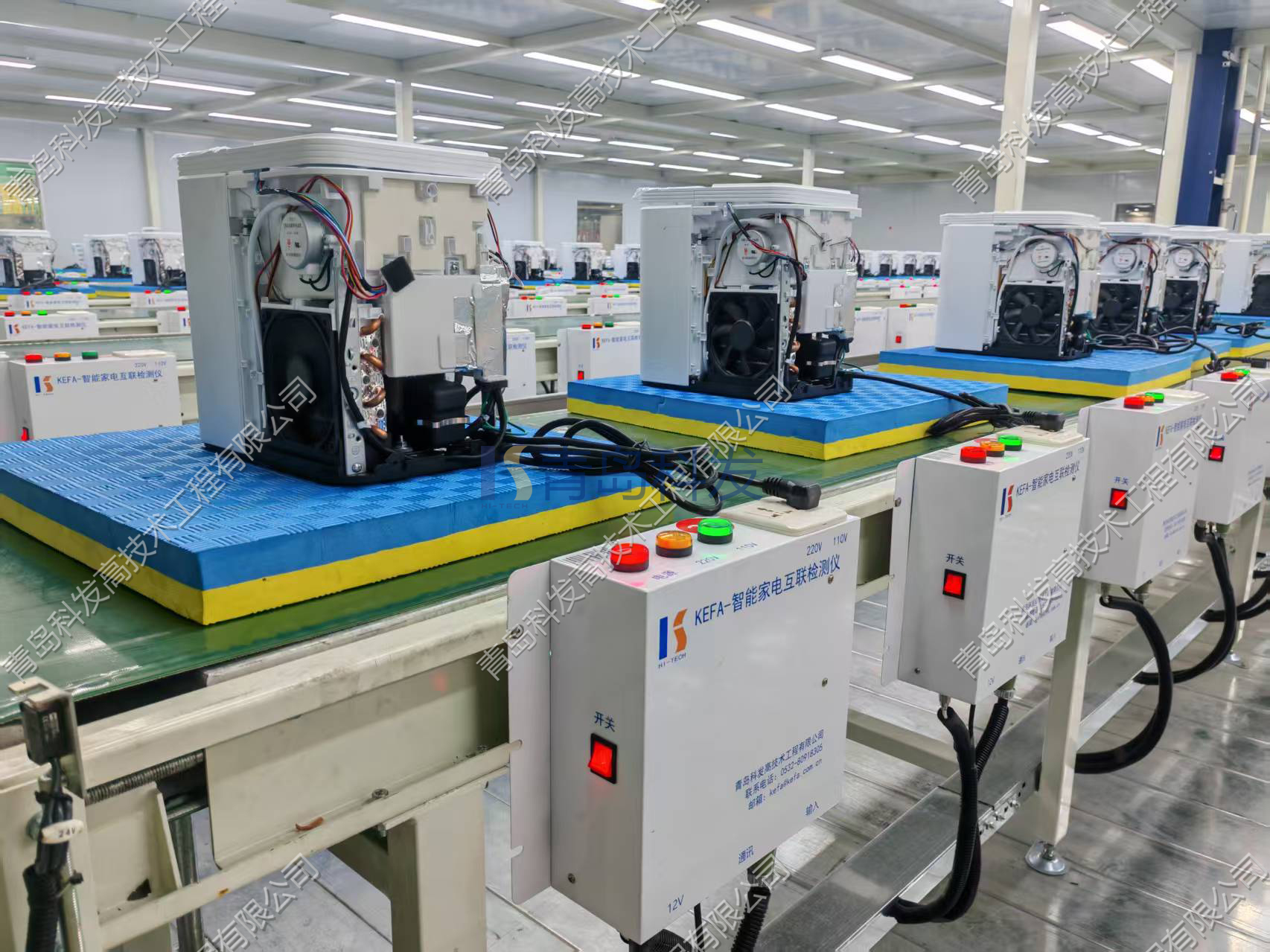

A dynamic detection system is used to monitor parameters such as temperature and input power in ice makers/blenders, thereby realizing the determination of the refrigeration performance of blenders.

1.Testing system communication method: Wireless 5G communication.

2.Maximum testing power: 1000W per unit.

3.Power supply type requirement: AC230V/50Hz, AC120V/60Hz.

4.Production line beat requirement: ≥ 8 seconds.

5.The system can realize automatic judgment according to the factory testing standards.

6.System automatic statistical report: Real-time monitoring of the detection line process is conducted, and daily production status is reflected through curves and reports to facilitate decision-making on on-site production.

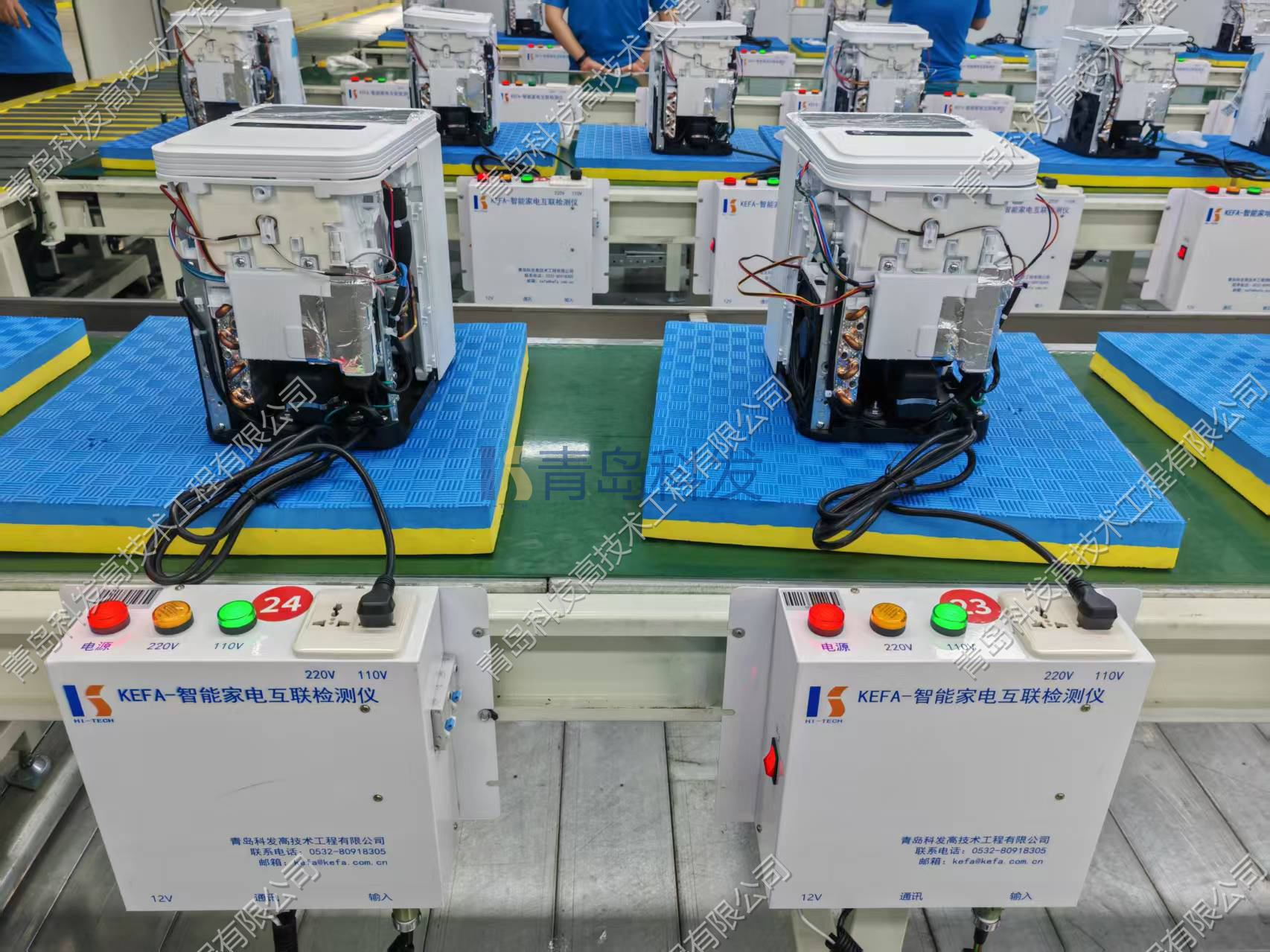

7.Meets the on-site MES format data transmission function.

8.The test box is connected and communicated with the ice maker/blender via a data cable to read the temperature changes of the ice maker/blender at each time period; through BDP testing, the interactive information of the ice maker/blender is read and written, including software version information, NTC temperature value, compressor power, compressor voltage, motor frequency, etc.
