Anemometer
Product Introduction

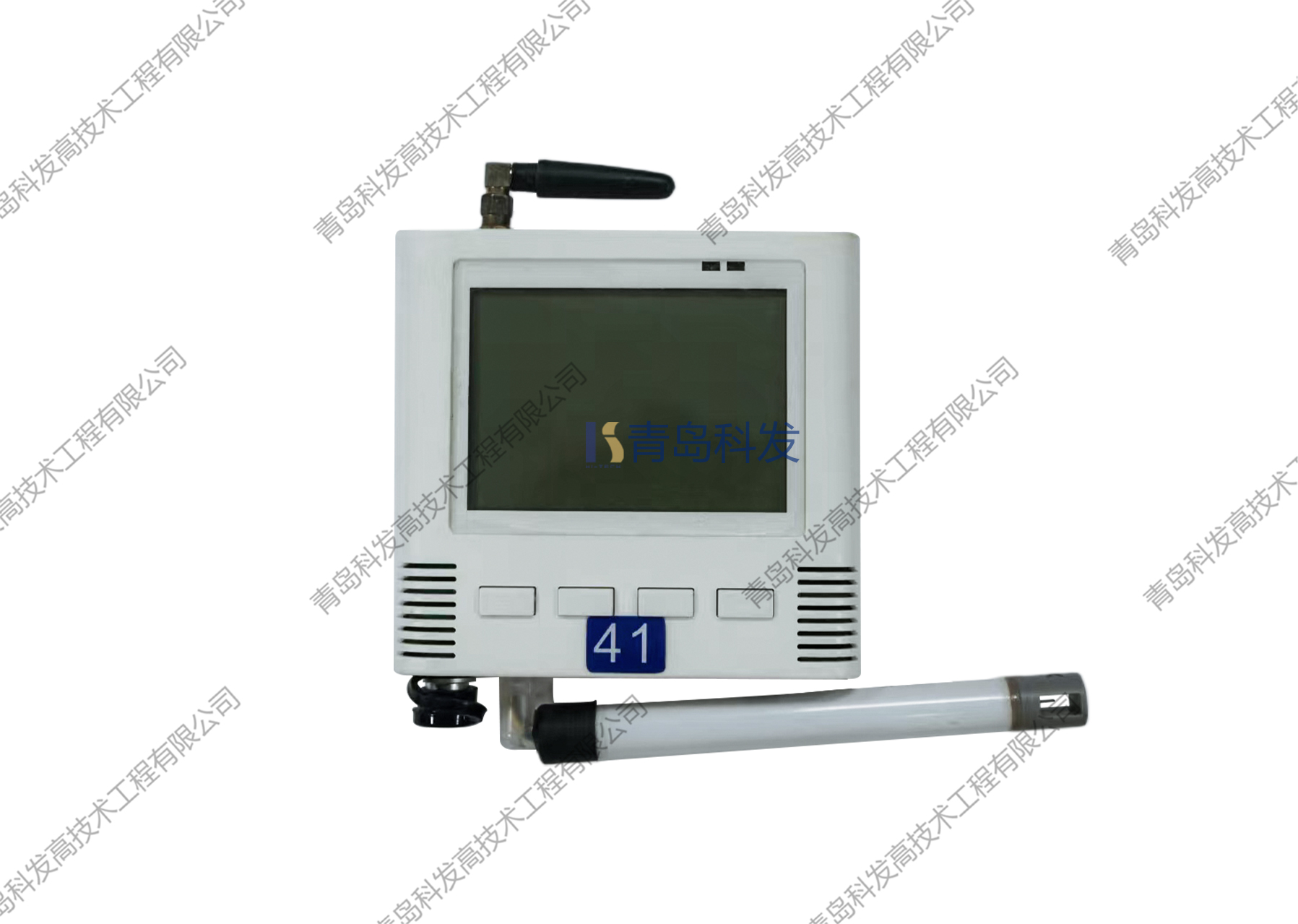

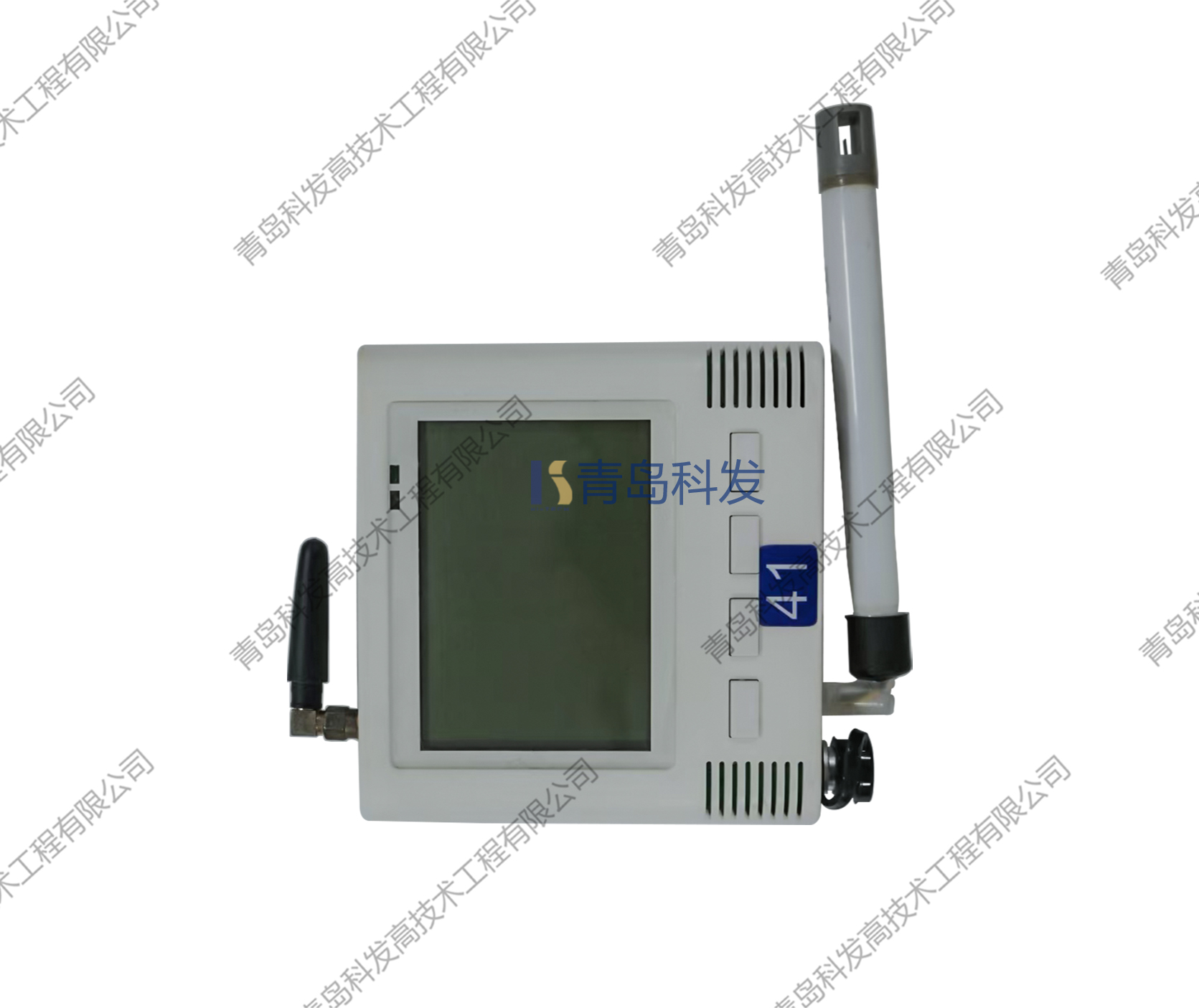

This product is an intelligent wind speed data logger integrated with wind speed, temperature monitoring, and LoRa wireless communication. It is specially optimized for measurement accuracy in the low wind speed range, capable of sensitively reflecting wind speed changes as small as 0.1 m/s while providing reliable ambient temperature data. Data is uploaded to industrial control software via a standard LoRaWAN network, which greatly simplifies wiring projects. It serves as an ideal solution for achieving digitalization and intelligence in wind environment monitoring.

+86 0532-80918305

Product Features
High-Precision Low Wind Speed Measurement
Within the low wind speed range of 0-1 m/s, the accuracy reaches up to ±0.02% of full scale, capturing subtle air flow changes
Dual-Parameter Integrated Monitoring
Built-in high-precision digital temperature sensor, synchronously collecting and uploading ambient temperature and wind speed data
Remote Wireless Communication
Adopts LoRa spread spectrum technology, featuring long transmission distance, strong penetration capability, low power consumption, and supporting long-term battery power supply
Industrial-Grade Protection Design
The sensor body features excellent weather resistance and corrosion resistance, suitable for outdoor and harsh industrial environments
Equipment parameters
Wind Speed Measurement Measurement Range 0 ~ 1 m/s (Higher range customizable)
Measurement Accuracy ±0.02% F.S. (Within 0 ~ 1 m/s range)
Resolution 0.1 m/s
Starting Wind Speed ≤ 0.1 m/s
Temperature Measurement Sensor Type High-precision digital temperature chip
Measurement Range -40℃ ~ +85℃
Measurement Accuracy ±0.5℃ (Within -10℃ ~ +85℃ range)

System & Communication

Communication Method LoRa wireless communication
Power Supply Method Lithium battery, external DC power supply
Operating Temperature -40℃ ~ +85℃
