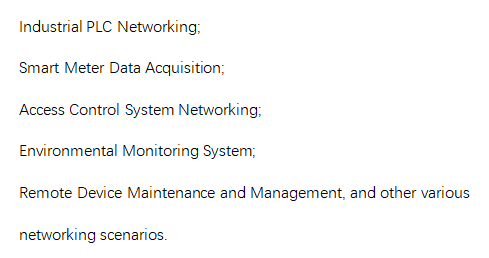

This product is an industrial-grade serial device network server designed to rapidly connect traditional RS232/RS485 serial devices to Ethernet or the Internet. By encapsulating serial data into TCP/IP protocol packets, it enables remote monitoring, data acquisition, and device management. Equipped with stable and reliable data transmission capabilities and flexible networking methods, it serves as an ideal communication gateway for industrial automation, intelligent buildings, remote operation and maintenance, and other scenarios.
+86 0532-80918305
Category |
Parameter |
Value |
Hardware Parameters |
Operating Voltage |
DC5.0 V |
Power Supply Mode |
Type-C接口 |
|
Operating Current |
160mA @5V |
|
Operating Temperature |
-40-85℃ |
|
Storage Temperature |
-40-105℃ |
|
Operating Humidity |
5%-95% RH |
|
Storage Humidity |
5%-95% RH |
|
Communication Interface Parameters |
Ethernet Port Specification |
RJ45、10/100Mbps、Auto-MDI/MDI-X |
Number of Ethernet Ports |
1 Port |
|
Serial Port Specification |
RS232：3-Wire（TX,RX,GND）；RS485：3-Wire（A,B,GND） with Terminal Block for Easy Wiring |
|
Number of Serial Ports |
2 Serial Ports (RS232/RS485 Simultaneously Usable) |
|
Serial Baud Rate |
600-230.4K（bps） |
|
Data Bits |
7、8 |
|
Parity Bit |
None、Even、Odd |
|
Network Modes |
TCP SERVER、TCP CLIENT、UDP SERVER、UDP CLIENT |
|
Mechanical Specifications |
Material |
Metal Housing |
Dimensions |
83*42*42mm(L*W*H)（DIN Rail Clip） |
|
Installation Method |
DIN Rail Clip (Mountable on DIN Rail, Removable) |
