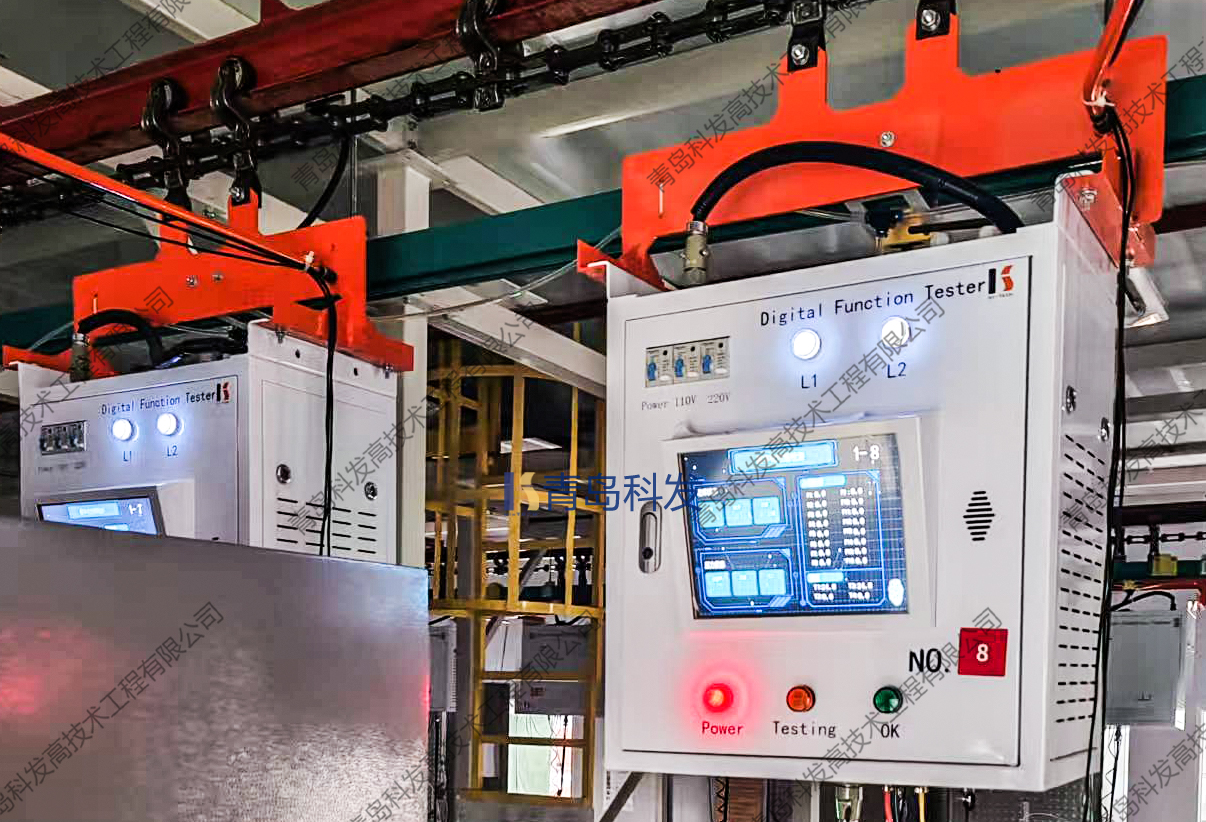

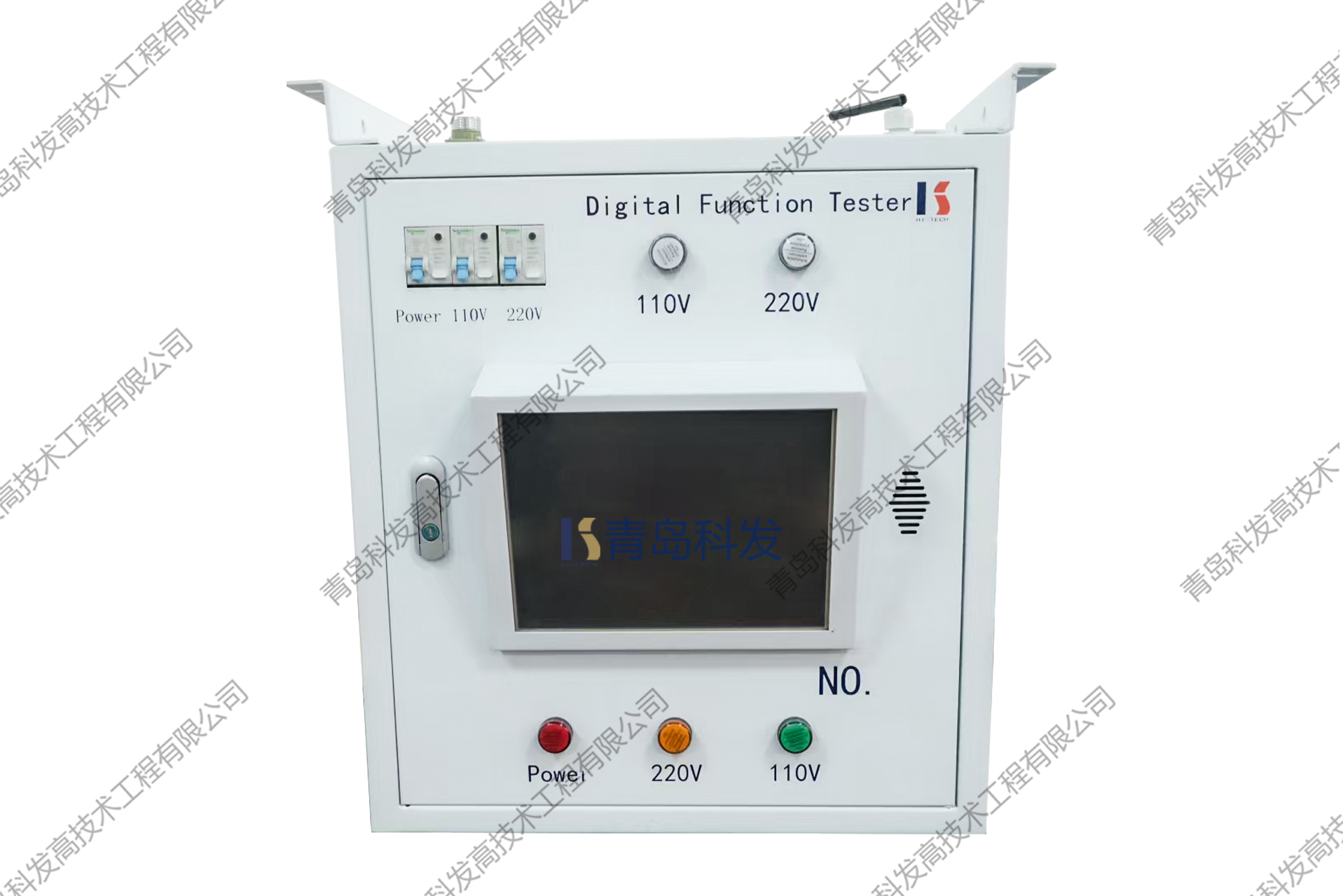

Air tightness test - Digital performance tester

Product Introduction

This product measures and controls the key parameters of ice maker-equipped products during the production process, including the control actions and electrical parameter detection of refrigerator components, air tightness inspection, and ice maker operation testing. It can test the air tightness of products under constant-speed movement, fully meeting the production cycle and efficiency requirements of factories.

+86 0532-80918305

Product Features

High-performance processor with a main frequency of 180 MHz.

A maximum sampling cycle of 0.1 seconds, accurately capturing subtle changes in data.

256K internal storage + 2M external storage

High scalability with 16 reserved peripheral interfaces.

It is compatible with multiple types of sensors by default.

Power segmental measurement

It supports segmented power measurement, featuring a high-precision low-power (0-30W) sensor with an accuracy of up to 0.1W.

Intelligent interconnected communication interface, supporting communication with various products.

Networking method: supports dual-band WiFi6 (5G/2.4G)

Customized touch display screen

Customized air tightness detection

Supports in-depth interaction with the tested products.

Equipment parameters

Adjustable test pressure range	0.1Mpa - 1Mpa
Test temperature range	-55℃ - 120℃
Power test accuracy	0.1W
Product test	110V&220V (switchable)
Test selection	Via barcode recognition
Adjustable test sampling frequency	0.1S - 60S (Adjustable)
