thermocouple module
Product Introduction

This product is a clamp-on thermocouple sensor specially developed for the refrigeration industry, particularly suitable for the R&D, quality inspection, and performance testing of household appliances such as refrigerators and freezers. It can be quickly and firmly clamped on the surfaces of components including compressor pipelines, suction and discharge pipes, evaporators, or condensers, enabling real-time and accurate monitoring of temperature changes. It provides key measured data for analyzing refrigeration system performance, optimizing control logic, and diagnosing faults.

+86 0532-80918305

Product Features
Flexible Customization
Supports customization of various thermocouple types including K-type, J-type, T-type, and E-type, meeting different temperature measurement requirements
Rapid Response
The temperature measurement terminal is in close contact with the surface of the measured object, enabling fast thermal response
Easy Installation
Spring-loaded clamping structure for quick mounting and dismounting, suitable for measured objects of various shapes
High-Temperature Resistant Design
Adopts high and low temperature resistant materials, enabling long-term stable operation in extreme temperature environments
Extended Service Life
Effectively protects the thermocouple temperature measurement terminal, extending the sensor's service life
Equipment parameters


 Thermocouple Type

K-type, J-type, T-type, E-type, etc. (Customizable)

Temperature Measurement Range

Dependent on thermocouple type

Protection Tube Material

Stainless steel braided wire, Teflon (Customizable)

Connection Method

Standard compensating wire or custom length

Mounting Method

Spring clip, copper cap

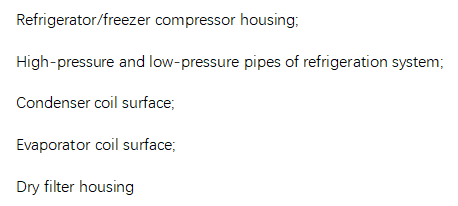

Common test substances
